Ensuring Proper Installation of Tractor ROPS

  • Tractor Knowledge
  • Last updated 10/3/2025

A Rollover Protective Structure (ROPS) is a critical safety feature designed to protect tractor operators in the event of a rollover accident. Studies by the National Institute for Occupational Safety and Health (NIOSH) show that tractors without ROPS account for over 50% of farm-related fatalities due to rollovers. When properly installed and paired with a seatbelt, ROPS reduces the risk of fatal injuries by up to 99%.

However, improper installation, missing hardware, or structural weaknesses can render the system ineffective. This comprehensive guide outlines best practices for ensuring your tractor’s ROPS is correctly installed, properly maintained, and fully compliant with safety regulations.

1. Understanding ROPS and Its Importance

A. What is a ROPS?

A ROPS is a reinforced roll bar or protective cab designed to:

  • Prevent crushing injuries in a tractor overturn.
  • Maintain a survivable space for the operator.
  • Work with seat belts to keep the driver within the protection zone.

B. Types of ROPS

There are three main types of ROPS:

  • 1. Fixed ROPS – A permanent, non-folding roll bar attached to the tractor frame.
  • 2. Folding ROPS (FROPS) – Designed for low-clearance areas like barns, orchards, and greenhouses.
  • 3. Enclosed Cab ROPS – The entire cab is reinforced, providing complete protection.

C. Safety Regulations and Requirements

  • OSHA Standard 29 CFR 1928.51 mandates ROPS on tractors built after 1976.
  • ANSI/SAE J2194 & OECD standards define strength and impact requirements for ROPS.
  • Insurance and liability – Many insurance policies require a certified ROPS for coverage.

Never remove or modify a factory-installed ROPS—this violates safety standards and increases liability risks.

2. Selecting the Right ROPS for Your Tractor

A. Use an OEM or Certified ROPS Kit

  • Only use manufacturer-approved ROPS kits (John Deere, Kubota, Case IH, etc.).
  • Avoid aftermarket or homemade roll bars, which lack structural testing and certification.
  • Check the tractor’s model and serial number to get the correct ROPS.

Some states offer ROPS Rebate Programs to help cover retrofit costs.

B. Verify ROPS Certification

Before purchasing, ensure the ROPS meets:

  • SAE J2194 (North America) – Strength and durability standards.
  • ISO 5700 / OECD Code 4 – International rollover protection standards.
  • ASABE / NIOSH certification – U.S. agricultural safety approvals.

3. Step-by-Step Installation Process

A. Gather Necessary Tools and Hardware

  • Grade 8 or higher bolts(as specified by the manufacturer).
  • Torque wrench to ensure proper tightening.
  • Thread-locking compound(if recommended).
  • Lifting equipment(ROPS components are heavy).

B. Securely Attach ROPS to the Tractor Frame

  • Align the mounting holes on the ROPS with the tractor’s factory-drilled mounting points.
  • Insert high-strength bolts through the designated holes.
  • Torque bolts to manufacturer specifications (usually 150-300 ft-lbs).
  • Do NOT weld, drill, or modify ROPS mounting brackets—this compromises strength.

NEVER bolt ROPS onto the fender, transmission case, or any non-load-bearing part.

C. Double-Check Stability and Alignment

  • ROPS should be vertically straight, not leaning or twisted.
  • Shake the structure—there should be no excessive movement.
  • Ensure no interference with seat adjustments, steering, or controls.

4. Inspecting ROPS for Structural Integrity

A properly installed ROPS must be structurally sound to function in an accident.

A. Visual Inspection Checklist

  • Cracks, bends, or dents in the frame.
  • Corrosion or rust (especially at bolt connections).
  • Loose, missing, or damaged fasteners.
  • Worn-out folding hinge pins(for FROPS models).

B. Post-Installation Torque Check

  • Recheck bolt tightness after 10-20 hours of use.
  • Periodically inspect and re-torque bolts every 6 months.

Mark bolts with paint or torque indicators to easily spot loosening.

5. Using ROPS Properly for Maximum Protection

A. Always Wear a Seat Belt

  • Without a seat belt, ROPS can’t protect you—you could be thrown from the tractor.
  • Keep seat belts clean and functional.
  • Replace worn or damaged seat belts immediately.

B. Keep ROPS in the Upright Position

  • Folding ROPS should remain locked upright during normal operation.
  • If lowered for clearance, raise it back immediately after exiting tight spaces.
  • Attach a "ROPS Up" reminder tag near the controls.

C. Avoid Modifications or Alterations

  • Never drill holes or weld brackets onto the ROPS!
  • ✔ If mounting lights, tools, or mirrors, use clamp-on brackets instead.

6. Troubleshooting Common ROPS Issues

A. ROPS is Loose or Misaligned

  • Check bolt tightness and re-torque to specifications.
  • Inspect for damaged mounting points on the tractor frame.

B. ROPS Interferes with Controls or Implements

  • Verify correct installation—misalignment may obstruct controls.
  • Adjust hydraulic levers, seat positioning, or mirror angles if necessary.

C. Folding ROPS Won't Lock in Place

  • Clean and lubricate hinge pins with penetrating oil.
  • Replace worn locking mechanisms if they don’t engage securely.

7. Long-Term Maintenance of ROPS

To ensure continued protection, follow these maintenance steps:

  • Inspect every 6 months for wear, rust, or structural damage.
  • Repaint scratched areas with rust-resistant paint.
  • Re-torque mounting bolts annually.
  • Lubricate folding ROPS hinges for smooth operation.
  • Replace ROPS after an accident or impact, even if damage is not visible.

Final Thoughts

How to Ensure a Safe and Properly Installed ROPS?

  • Use a certified, OEM-approved ROPS kit—no aftermarket or homemade solutions.
  • Bolt ROPS to the tractor’s designated mounting points—never weld or modify it.
  • Check for proper torque and alignment during installation.
  • Inspect ROPS every 6 months for rust, damage, or loose bolts.
  • Always wear a seat belt for full protection.
  • Keep ROPS upright unless temporarily working in a low-clearance area.
  • Replace ROPS immediately after any impact or rollover.

A properly installed ROPS can mean the difference between life and death in a rollover situation. Following these steps ensures maximum protection, regulatory compliance, and peace of mind for every tractor operator.

Need help finding the right ROPS kit or troubleshooting an issue? Let me know!

Love This Content? Share It with Your Friends!

Hey there! If you enjoyed this post, why not share it with fellow farmers, agri-enthusiasts, or anyone who’d find it useful? Let’s grow together!

We also welcome your feedback—if you spot any mistakes or have suggestions, let us know! Your input helps us improve.

Facebook
X

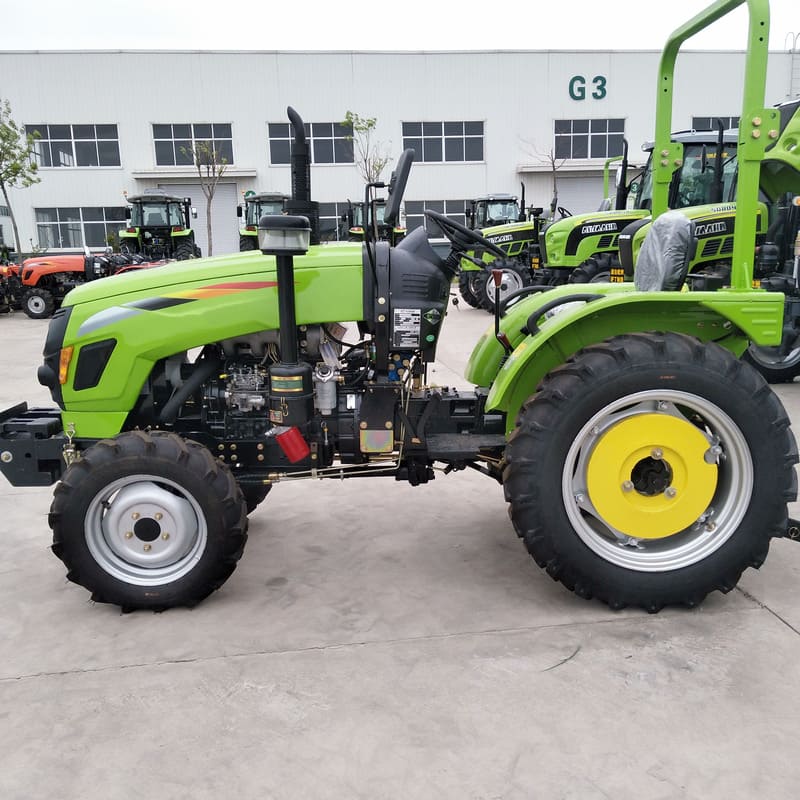

A farm tractor equipped with a Rollover Protective Structure (ROPS) for enhanced operator safety in the field.
